SCS Sample Conditioning System

Accuracy in the measurement of Natural Gas and Biomethane, has a strong relationship with an ability to collect and deliver a representative sample defined by science and standard.

The value of natural gas is determined by its quality.

What is a Representative Sample? A representative sample is simply a volume of natural gas whose makeup is consistent with that flowing in the pipeline from which it was taken. The widely accepted standard API 14.1; GPA 2166, API MPMS 14.1, ISO 10715 (Biomethane EN 16723 Part 1 and Part 2) and ISO 6976 Natural gas defined that a representative sample must be:

  • Identical composition, or as identical as possible to the sample source stream.
  • Above the hydrocarbon dew point.
  • Representative of the vapor phase
  • Representative of the vapor phase only the of portion of the system being analyzed.
  • Representative of the vapor phase composition

SCS is usually needed to adjust and adapt the condition of sample in order to get the best condition sample for analyzer.

Sampling systems specifically tailored to your application

Each SCS is designed to meet specific application needs; ensuring sample integrity is maintained throughout the sample extraction and preconditioning process.

With a wide range of sampling equipment, including our retractable sample probes using Genie® Membrane Technology™, to separate unwanted liquid aerosols and droplets from the gas sample at process conditions.

International Gas Standard References

We overall assure the compliance with GPA Standard 2166-05, API 14.1, API MPMS 14.1, for Gas and Biomethane ISO 10715, EN 16723 Part 1 and Part 2.

The intrusive liquid elimination is done inside of the pipeline therefore the gas and liquid are at pipeline conditions of pressure and temperature. This assures compliance with the International Gas Standard for removal of liquids from a natural gas sample. Use a membrane tipped probe whenever possible.

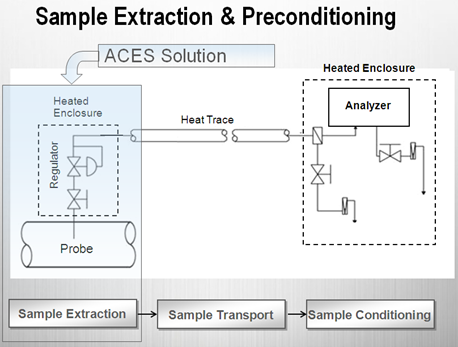

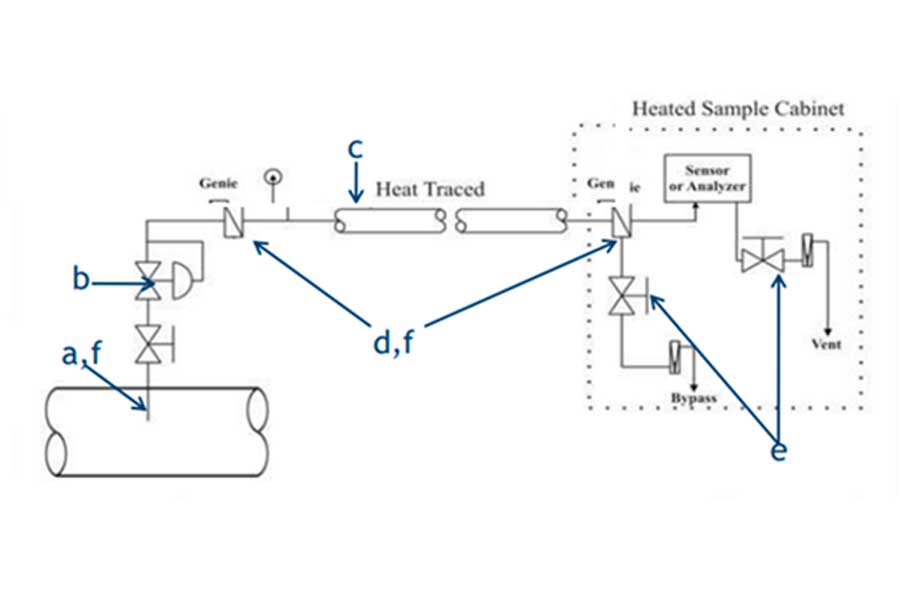

Sample Conditioning System Task

  1. Extract representative sample of the gas (most important task)
  2. Reduce (regulate the pressure)
  3. Transport the sample to the analyzer
  4. Protect the analyzer (analyzer “safety net”)
  5. Control flow rate
  6. Remove contaminants
  7. Maintaining the sample in the gas phase at all times after extraction. At least 30 °F of de-saturation is required by the API 14.1 standard to keep away from the hydrocarbon dew point (HDP).

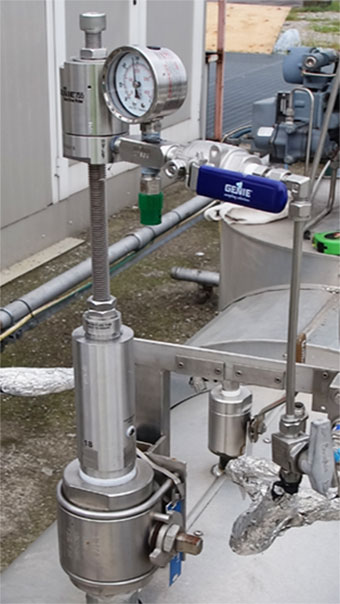

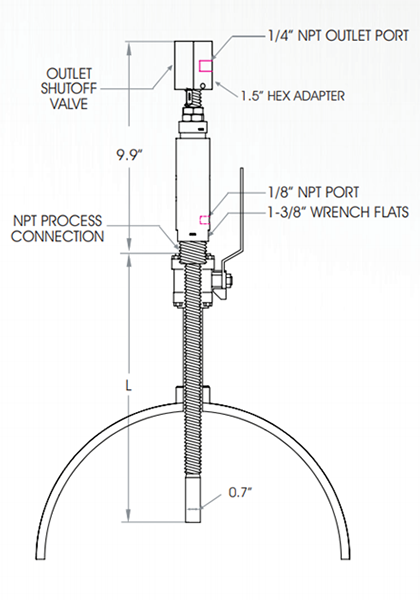

DDP 755 Sample extraction probes with membrane tip and probe regulator

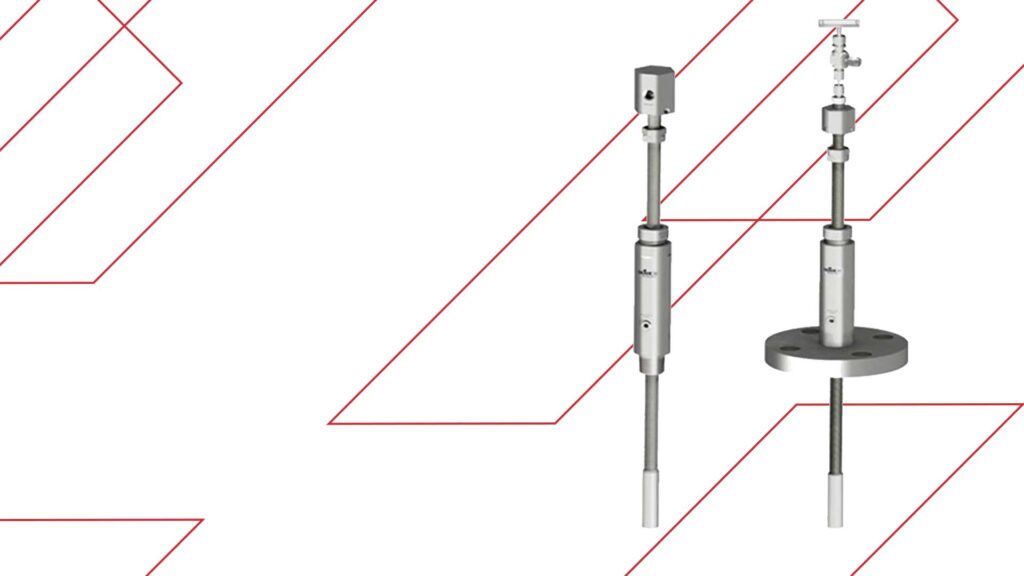

Model 755™: The new technology

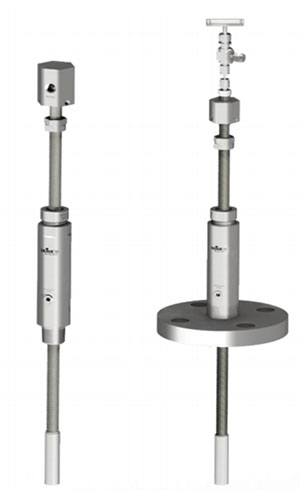

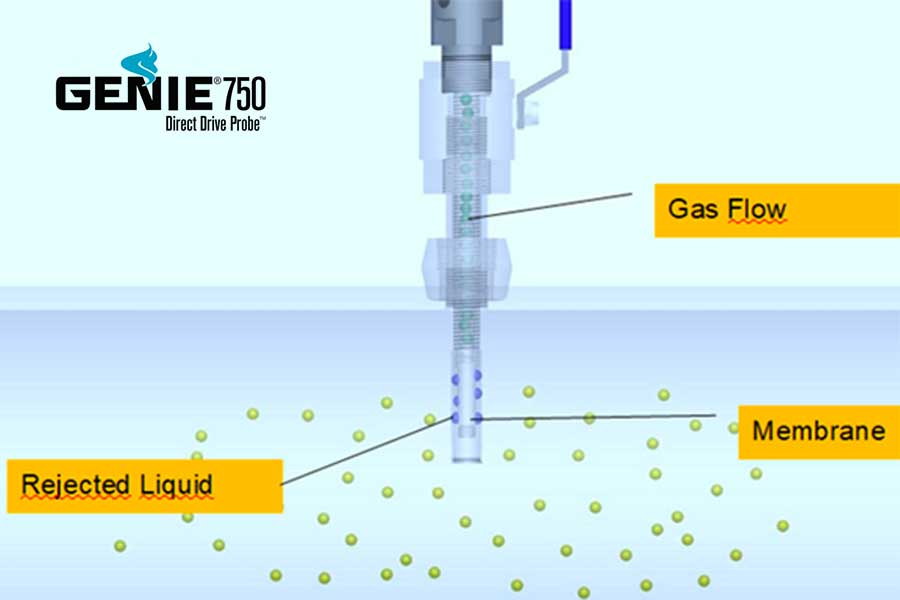

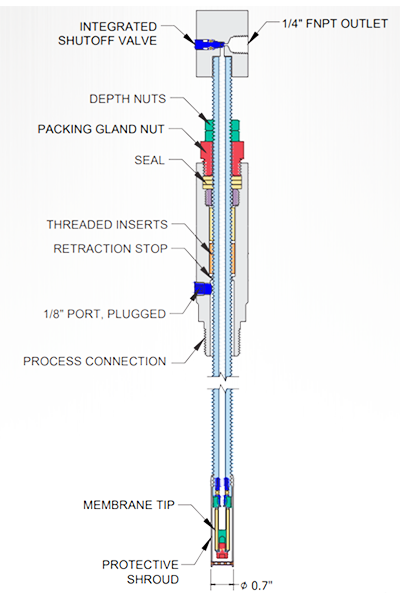

Genie® Probes™ provide a means to insert Genie® Membrane Technology™ directly into a pipeline for the purpose of separating unwanted liquid and particulate from the gas sample at flowing conditions; in compliance with industry standards.

The pressure regulator is built into the probe immediately downstream of the membrane, inside of the pipeline.

Heat is transferred from the flowing pipeline gas to the regulator to prevent excessive Joule-Thomson cooling, helping to prevent condensation during pressure letdown.

Portable & permanent Analytically Correct™ gas sample probes with “Easy Turn” insertion

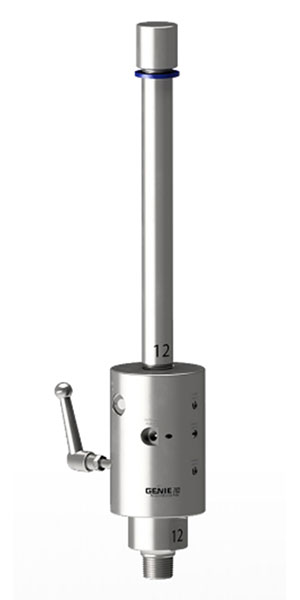

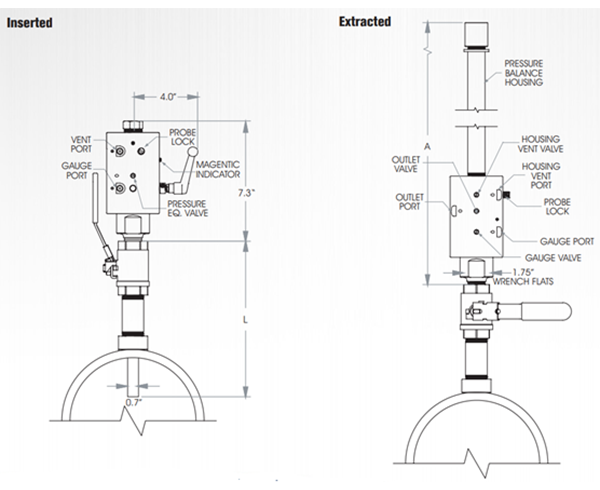

The PIP™ Model 702 is a simple, safe and economical solution to extracting a representative vapor phase sample from a source. Compared to the PIP™ Model 701, the Model 702 is designed for sampling at a specific depth in a pressurized pipeline so each length is customized to fit your application. Our Pressure Balance™ technique effortlessly lowers the 702 probe into a pipeline without the force and bulky equipment associated with pneumatic or hydraulic methods. Once installed, the installation housing can be replaced with a shorter housing to accommodate partial retraction of the probe during pigging operations.

One to Four Stage Heated Pressure Regulator

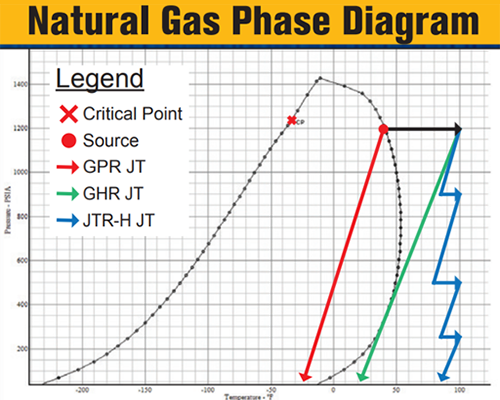

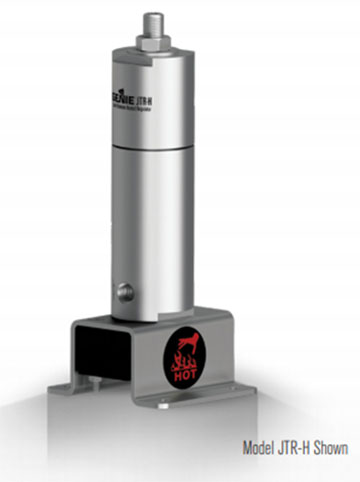

The four-stage regulator not effected by supply pressure changes! The Model JTR-H™ is a revolutionary product containing four stages of heated pressure regulation in one 316 stainless steel housing. The design of the JTR-H™ separates it from current multi-stage heated regulators that are typically limited to two stages. Specifically designed for gas analytical systems, the JTR-H™ prevents condensation of the sample gas from occurring as a result of Joule-Thomson (JT) cooling during the pressure reduction process of high pressure and high dew point gases or due to low operating or ambient temperatures.

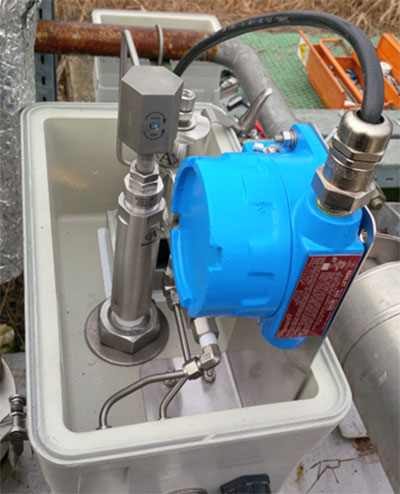

Analytically Correct Engineered Systems (ACES) for natural gas

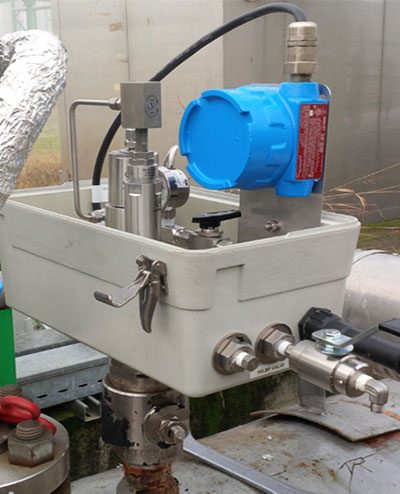

Each Analytically Correct™ Engineered Sample System is designed to meet specific application needs; ensuring sample integrity is maintained throughout the sample extraction and preconditioning process. In compliance with the GPA Standard 2166-05, API 14.1, ISO 10715, API MPMS 14.1, ISO 6976 Natural gas.

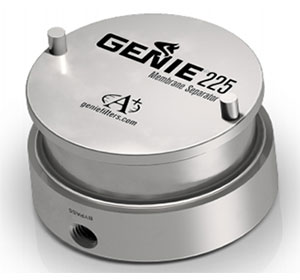

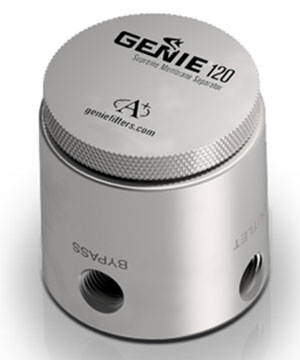

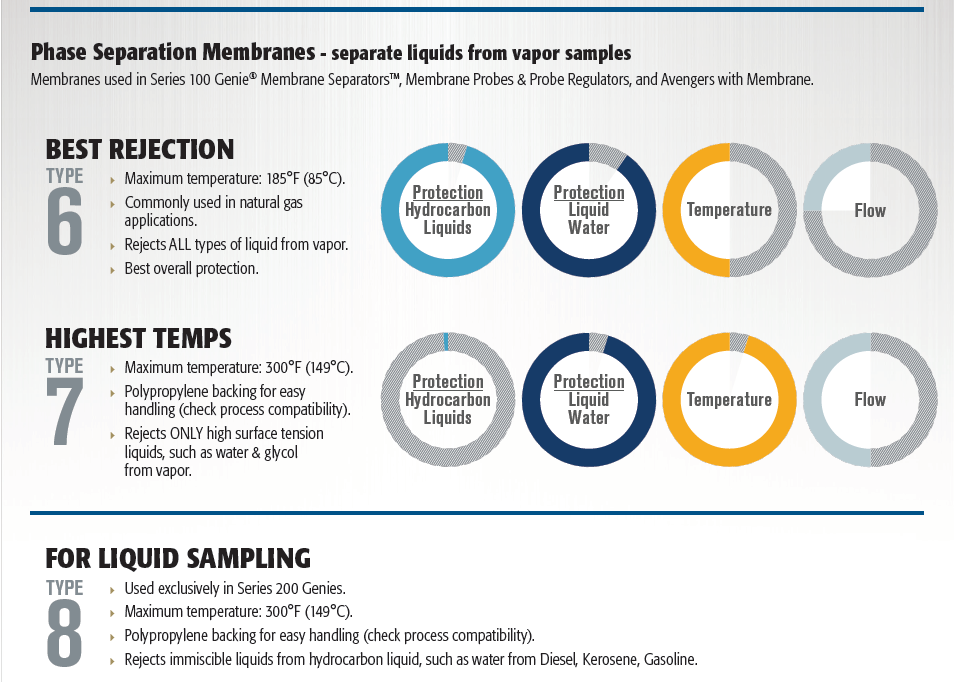

Genie® Membrane Separators™; Liquid/Gas and Liquid/Liquid separators

The original brand known for sample conditioning and analyser protection.


The Supreme 100 Series™ remove 100% of entrained liquid and particulate in gas samples, which allow only gas sample to flow to analyzers. This action protects analyzers and other sampling components against liquid damage. They offer an improved housing design for easy maintenance and the innovative Liquid Block Technology™ .


The Supreme 200 Series™ remove 100% of suspended, immiscible liquids in liquid hydrocarbon samples, which allow only hydrocarbon liquid sample to flow to an analyzer.

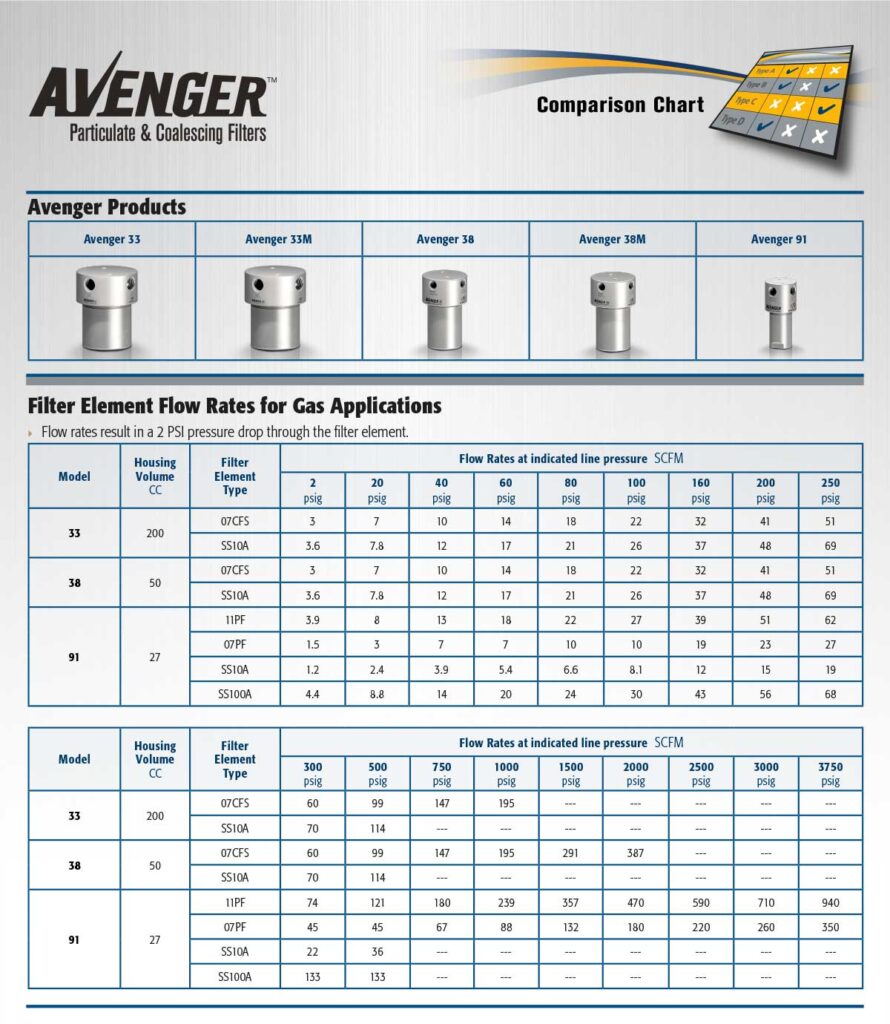

Coalescing/particulate filtration

High performance filters providing the utmost flexibility for coalescing/particulate filtration needs.

Merlin Cyclone Separator

The MERLIN Pre-conditioning System is the ultimate protection for all on-line process gas analysers and equipment against particulates, liquids and mists found in process gases. It employs a patented and innovative technology to protect on-line gas analysers over a wide range of operating conditions. It is the solution to top productivity and to ensure significant cost savings in the plants.

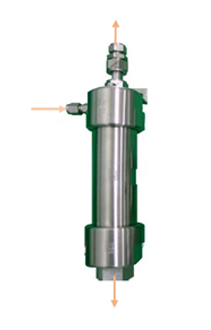

The Merlin Cyclone Separator for Gas Applications

  • Good separation achieved in typical gas applications by large density diffrenences.

  • Ultra smooth cyclone geometry prevents splashing of liquid droplets which creates the mists that can be carried-over with the clean gas outlet.

  • Smaller particles less than 10 micron adhere/stick to the liquid film for enhanced separation

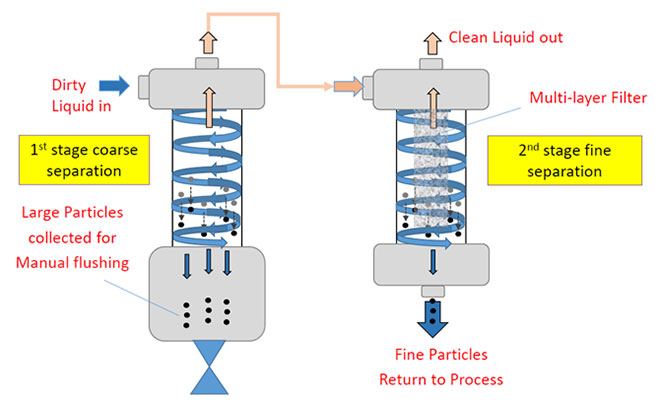

Ultimate solution for very dirty service dual stage Merlin Cyclone Separation


For typical Specifications please download the Technical Brochure
