Water Cut Meter / BS&W

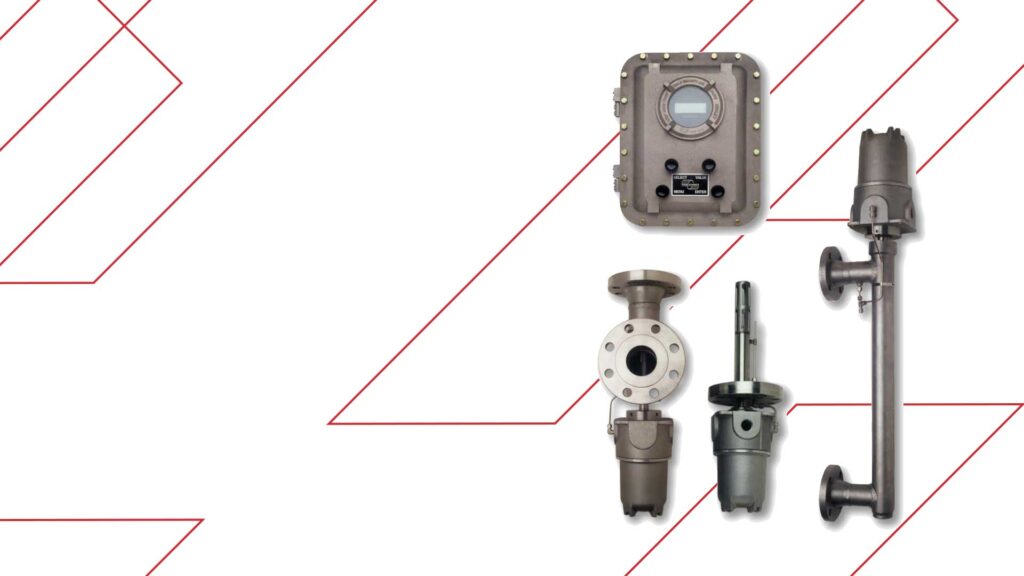

PHASE DYNAMICS is the leading supplier of Water Cut Analyzers wich measure the percentage of water in hydrocarbons. Water Cut Analyzer – BS&W Meter, reads both oil continuous and water continuous modes simultaneously and automatically transitions between the two. Water concentration is measured in Low Range (0-1%, 0-10%, 0-20%), High Range (80-100%), Full Range (0-100%).

Phase Dynamics’ patented oscillator load-pull technology responds instantaneously to the dynamic changes in the composition of the materials flowing through the Analyzer’s Measurement Section.

Each Phase Dynamics Analyzer is factory calibrated on in-house developed calibration loops where temperature, pressure, and material properties are tightly controlled and monitored as they flow through the Analyzer.

Technical Features

  • Low Range (0-4%, 0-10%, 0-20%)
  • Mid Range (0 to Inversion)
  • Full Range (0-100%)
  • High Range (80-100%)
  • Flow-Through Analyzers in 1″ to 4″ Pipe Sizes
  • Insertion Analyzers for installation in Pipes 6″ and Larger
  • Three Styles of Flow-Through Configurations
    CSA, FM, CE, ATEX, IECEx Available


- Family of Water Cut Analyzers
- Water in TEG-MEG Analyzers


  • Steam Assisted Gravity Drainage (SAGD)
  • Fiscal & Custody Transfer
  • Pipeline Monitoring
  • Automatic Well Testing (AWT)
  • Lease Automatic Custody Transfer (LACT)
  •  Condensate Metering
  • Separation Tank Control
    Basic Sediment & Water (BS&W)
